What are the three buckle points of the seat belt?

In daily driving, the seat belt is the most basic and most critical life protection device. The widely used three-point seat belt design relies on three buckle points to effectively fix the occupant's body. So, what are the three buckle points of the seat belt? What role do they play in the protection process? This article will give you a detailed analysis.

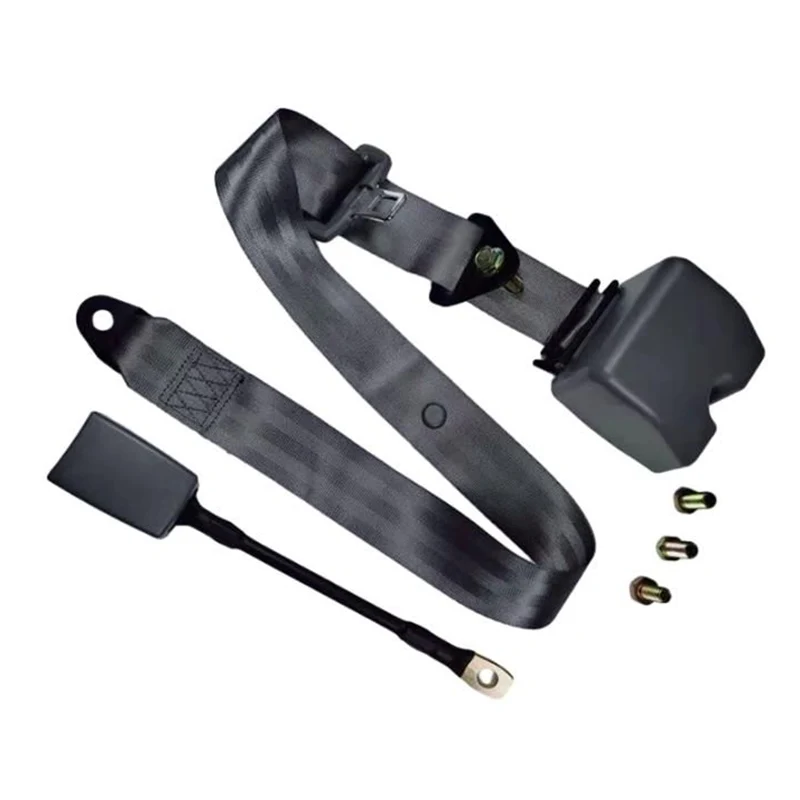

What is a three-point seat belt?

The three-point seat belt was invented by Swedish Volvo engineer Nils Bohlin in 1959. Compared with the traditional lap belt seat belt, the three-point seat belt adds shoulder fixation, which can restrain the upper and lower body of the driver or passenger at the same time, effectively disperse the impact force when the vehicle collides, and significantly reduce the risk of injury.

The so-called "three points" refers to the three fixed points where the seat belt is connected to the body structure, which are:

Three buckle points of the seat belt

1. Shoulder fixing point

The shoulder fixing point is usually located above the B-pillar next to the door.

The seat belt is pulled out from here, diagonally across the shoulders of the occupants, and fits the chest to prevent the occupants from leaning forward or being thrown out of the vehicle in the event of an accident. Good shoulder support is the key to effective seat belt protection.

2. Waist anchor point

The waist anchor point is installed near the bottom of the seat near the door.

The seat belt passes through the waist of the occupants and fits the hip area. In the event of a collision, this anchor point helps control the movement of the lower body to prevent the body from sliding down or popping out of the seat. The correct position should be pressed on the hip bone, not the abdomen, to avoid secondary injuries.

3. Buckle anchor point

The buckle anchor point is located on the inside of the seat, near the transmission tunnel or the center of the seat.

After the occupants fasten the seat belt, they insert the insert into the buckle to complete the lock, ensuring that the seat belt forms a closed protective circle. The buckle design usually has a quick release function, which can also be quickly unfastened in an emergency.

Why are the three buckle points so important?

The three-point seat belt can form a "V"-shaped fixing system, which protects important areas such as the chest, waist and pelvis by reasonably dispersing the body's stress points. Compared with the traditional single-point buckle seat belt, the three-point buckle design greatly improves the impact resistance and reduces the probability of serious injuries to drivers and passengers in collisions, sudden braking and other situations.

In addition, modern vehicles are also equipped with pretensioner and force limiter technology, which enables the three-point seat belt to play a more precise protective role at the moment of an accident.

The three buckle points of the seat belt - shoulder fixing point, waist fixing point and buckle fixing point, together constitute an efficient and reliable occupant protection system. Every driver and passenger should use the three-point seat belt correctly when riding in a car, adjust it to the appropriate position, and ensure that this "life belt" truly plays its due protective role.
